The abrasive wheel produces a dressing and truing action when held at an angle of 15 degrees from the axis of the wheel being dressed. Full 4" diameter by 1 1/2" face wheel mounted on double row of dust protected ball bearings. Handles designed to protect the users hands.| Code No. | Dresser Type | Wgt. / lbs. |
|---|---|---|
| 25110 | Double Handle Type, Hooded | 5-3/4 |
| 25120 | Extra Wheel 4" x 1-1/2" x 1-1/2" | 1-3/4 |
| Crackerjack Jr. Dresser in single handle type only with 3" by 1" face wheel | ||
| 25410 | Single handle dresser | 3-1/2 |
| 25420 | Extra Wheel 3" x 1" x 3/4" | 3/4 |

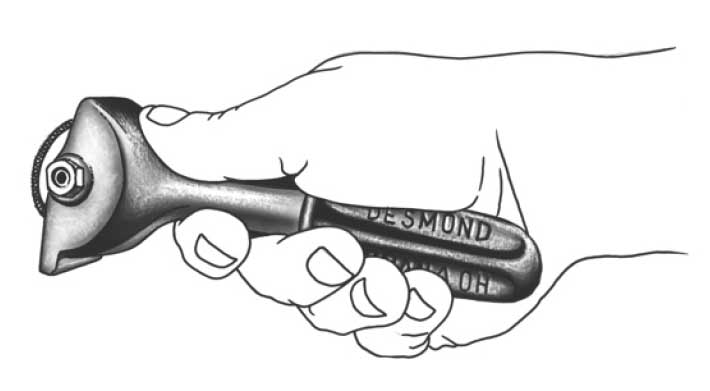

Mini dresser for use on (4,000 max RPM) smaller fine to medium grit tool or sharpening grinding wheels. Use at 15 degree angle to produce crush dressing action.
| Code Number | Type |
|---|---|
| 25510 | Dresser |
| 25520 | Wheel 1-1/2" x 5/8" x 5/16" |
